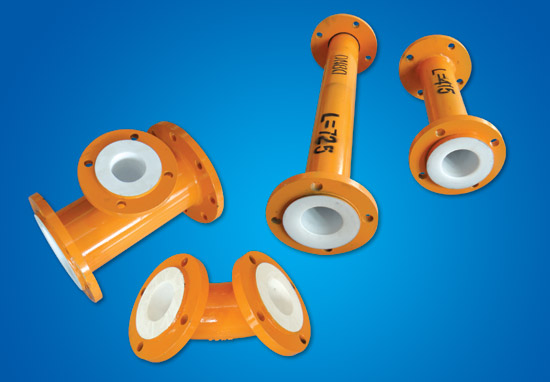

PTFE Steel-plastic Component Pipe

Kaxite Sealing's PTFE Steel-plastic Component Pipe offers superior corrosion resistance and durability for demanding industrial applications. Its innovative steel-reinforced PTFE construction combines strength with flexibility, ideal for chemical processing, oil, and gas sectors. Experience unmatched reliability and longevity.

Send Inquiry

Product Description

[ Features ]

The PTFE steel-plastic component pipe is made with high qualified ram extrusion tube, use special processing technology to tight the plastic tube inner steel pipe, the positive pressure is 1.6Mpa, the negative pressure is 77Kpa; it has a wide range of practicable temperature from -60

- +260

with good anticorrosion facility. It can transport corrosion gas, liquid under high temperature, which is unstable by others.

[ Specifications ]

Dg Diameter	S₁	S₂	D	F	L
25(1″)	3.5	2	21	55	4000
32(1¼″)	3.5, 4	2	28	68
40(1½″)	3.5	2	36	80
50(2″)	4	2	46	90
65(2½″)	4.5	2.5	60	105
80(3″)	4.5	2.5	75	125
100(4″)	4.5	3	94	150
125(5″)	4.5	3.5, 4	117	185
150(6″)	4.5	4	142	215
200(8″)	4.5	4, 4.5	191	280
