In the demanding world of industrial sealing, reliability and chemical resistance are non-negotiable. PTFE Packing, a sealing solution crafted from polytetrafluoroethylene, stands as a cornerstone for applications where aggressive media, extreme temperatures, and stringent purity requirements are the norm. Also known as Teflon® packing (a common brand name), this material is renowned for its exceptional inertness and low friction. At Kaxite Sealing, we engineer our PTFE braided packing to deliver not just containment, but predictable, long-lasting performance that reduces maintenance downtime and total cost of ownership for our clients worldwide.

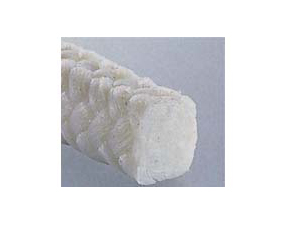

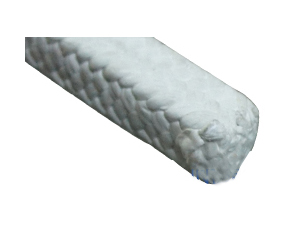

Not all PTFE packings are created equal. The performance hinges on the purity of the PTFE, the braiding technique, and the inclusion of performance-enhancing lubricants. Kaxite Sealing utilizes high-grade, virgin PTFE filaments, ensuring optimal chemical compatibility and thermal stability. Our proprietary braiding process creates a dense, cohesive structure that resists extrusion under pressure and maintains a consistent seal over time. We offer a range of PTFE packing styles—from pure white for ultra-pure applications to graphite- or moly-impregnated variants for enhanced lubricity and thermal conductivity in high-speed or high-temperature service.
Understanding the technical parameters is crucial for selecting the correct packing for your specific application. Below are the core specifications and performance characteristics of Kaxite Sealing's standard high-performance PTFE braided packing.
| Parameter | Range / Specification | Notes |
|---|---|---|
| Temperature Range | -268°C to +288°C (-450°F to +550°F) | Short peaks up to 315°C (600°F) possible. |
| pH Range | 0 - 14 | Chemically inert to virtually all industrial chemicals and solvents. |
| Maximum Pressure | Up to 1500 psi (103 bar) | Dependent on shaft speed, size, and gland design. |
| Shaft Speed | Up to 15 m/s (3000 ft/min) | Ideal for high-speed rotary equipment; fillers can improve performance. |
| Applications | Pumps, Valves, Mixers, Agitators, Reactors | Suitable for rotary, reciprocating, and static sealing. |
| Compatible Media | Acids, Caustics, Solvents, Steam, Fuels, Pharmaceuticals, Food | FDA-compliant grades available for food and pharmaceutical use. |
Selecting the right PTFE packing variant is key. Use this guide to match our product line to your operating conditions.
| Kaxite Product Code | Description | Primary Features | Best For |
|---|---|---|---|

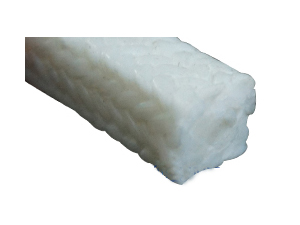

| KX-PTFE-W | Pure White PTFE Braided Packing | 100% virgin PTFE, ultra-pure, excellent chemical resistance. | Food, Pharma, Chemical processing with strict purity needs. |
| KX-PTFE-G | Graphite-Impregnated PTFE Packing | Enhanced thermal conductivity, lower friction, improved wear resistance. | Hot water, steam, heat transfer fluids, high-temperature services. |
| KX-PTFE-M | Molybdenum Disulfide-Impregnated PTFE Packing | Superior dry-run capability, excellent lubrication under load. | Applications with poor lubrication, slow oscillations, heavy loads. |
| KX-PTFE-A | PTFE Packing with Aramid Core | High tensile strength, superior extrusion resistance. | High-pressure valve stems, reciprocating pumps, abrasive media. |
Proper installation is critical to achieving the full performance potential of PTFE packing and extending its service life.
Q: What are the main advantages of PTFE packing over traditional packing materials like flax or aramid?
A: PTFE packing offers unparalleled chemical resistance, a wider temperature range, and extremely low friction. It does not swell, harden, or degrade when exposed to most chemicals. It is self-lubricating, requires less adjustment, and is suitable for services where product purity is critical, unlike organic materials that can contaminate process streams.
Q: Can Kaxite Sealing PTFE packing be used in food-grade or pharmaceutical applications?
A: Absolutely. Our KX-PTFE-W pure white packing is manufactured using 100% virgin PTFE resin that complies with FDA regulations 21 CFR 177.1550 for repeated use in contact with food. It is non-toxic, non-contaminating, and can be sterilized, making it ideal for food, beverage, and pharmaceutical processing.
Q: How do I choose between pure PTFE, graphite-filled, and molybdenum-disulfide-filled packing?
A: Choose pure PTFE (KX-PTFE-W) for maximum chemical purity and resistance. Select graphite-filled PTFE (KX-PTFE-G) for applications involving high temperatures (like steam) to improve heat dissipation and reduce shaft scoring. Opt for molybdenum-disulfide-filled PTFE (KX-PTFE-M) for slow-moving, heavily loaded equipment or situations with marginal lubrication, as it provides excellent dry-running properties.
Q: What is the typical lifespan of PTFE packing, and what factors affect it?
A: Lifespan varies widely based on service conditions. Under optimal conditions (proper installation, adequate lubrication/cooling, within pressure/speed limits), PTFE packing can last for several months to years. Key factors that reduce life include: excessive gland pressure causing heat buildup, abrasive media, shaft misalignment or wear, operation outside recommended temperature/pH limits, and dry running without any lubrication.
Q: Is PTFE packing suitable for high-speed centrifugal pumps?
A: Yes, PTFE braided packing from Kaxite Sealing is an excellent choice for high-speed rotary equipment. Its low coefficient of friction and good thermal properties help manage heat generation. For the best results in high-speed services, ensure the shaft/sleeve is hard-faced and in good condition, and consider our graphite-impregnated variant (KX-PTFE-G) for enhanced heat dissipation. Proper run-in and adjustment are crucial to prevent overheating.
Q: How do I handle leakage from old PTFE packing during replacement?
A: Safety first. Isolate and depressurize the equipment. For hazardous leaks, have appropriate containment and PPE. Remove the gland follower and use a packing extractor tool to carefully remove rings one by one. If packing is hardened, it may need to be carefully drilled out. Never use excessive force that could score the shaft. Kaxite Sealing recommends keeping a maintenance kit with the correct tools for safe and efficient replacement.
Q: Can I use PTFE packing on a reciprocating (in-and-out) motion?
A: Yes, PTFE packing is suitable for reciprocating service, such as in plunger pumps or compressor rods. Its self-lubricating nature and resilience make it a good choice. For high-pressure reciprocating applications, our aramid-cored PTFE packing (KX-PTFE-A) provides exceptional extrusion resistance and durability under the cyclic loading typical of this motion.
