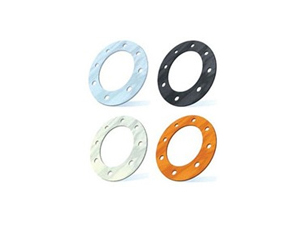

In industrial sealing, the shift away from hazardous materials has been paramount. Non-asbestos gaskets represent the modern, safe, and high-performance solution engineered to replace traditional asbestos-based gaskets. These gaskets are composite materials manufactured using a blend of organic or synthetic fibers, such as aramid, glass, carbon, or cellulose, bound with elastomers like NBR or SBR. The primary purpose is to create a reliable, compressible seal between two mating flanges, preventing leakage of fluids or gases in piping systems, engines, pumps, and other industrial equipment. Kaxite Sealing specializes in producing premium-grade non-asbestos gaskets that deliver exceptional sealing integrity without the health and environmental risks associated with asbestos.
Selecting Kaxite Sealing means investing in quality, reliability, and safety. Our products are rigorously tested to meet and exceed international standards, including ASTM F104, DIN 3754, and JIS B 2403. We utilize advanced manufacturing processes and high-quality raw materials to ensure consistent performance under a wide range of pressures and temperatures. Our gaskets offer superior resistance to creep relaxation, ensuring the seal remains tight over extended periods. Furthermore, our technical support team works closely with clients to recommend the ideal gasket material for their specific application, ensuring optimal system efficiency and longevity.
Our non-asbestos gasket range is categorized based on material composition and suitability for different media and operating conditions. Below are the key specifications presented in both list and table formats for clarity.
| Property / Grade | NA1 | NA2 | NA3 | NA4 | NA5 |
|---|---|---|---|---|---|
| Temperature Range | -50°C to +200°C | -30°C to +180°C | -20°C to +250°C | -50°C to +400°C | -30°C to +150°C |
| Max. Pressure (PSI) | 1500 | 1200 | 1000 | 800 | 900 |
| pH Range | 4 - 10 | 5 - 12 | 1 - 14 | 3 - 11 | 5 - 9 |
| Tensile Strength (MPa) | 10.5 | 9.0 | 8.5 | 11.0 | 7.5 |
| Compression Set (%) | 15 | 18 | 20 | 12 | 22 |
| Common Applications | Water pipelines, low-pressure steam | Hydraulic systems, fuel lines | Chemical processing plants | Exhaust manifolds, boiler systems | Food processing equipment |
What exactly does "non-asbestos" mean in gaskets?
Non-asbestos gaskets are sealing materials manufactured without using any asbestos fibers. Historically, asbestos was prized for its heat resistance and strength but is now known to cause serious lung diseases. Non-asbestos gaskets use safer alternative fibers (e.g., aramid, glass, cellulose) and rubber binders to replicate and often exceed the sealing performance of asbestos gaskets without the associated health hazards.
Are non-asbestos gaskets as durable as the old asbestos ones?
Yes, modern non-asbestos gaskets from reputable manufacturers like Kaxite Sealing are engineered to be equally, if not more, durable. They offer excellent resistance to temperature, pressure, and chemical attack. Advances in fiber technology and compound formulation have resulted in materials with superior creep resistance and recovery, leading to longer service life and more reliable seals in dynamic operating conditions.
How do I select the right non-asbestos gasket material for my application?
Selection depends on four critical factors: the fluid or gas being sealed (chemical compatibility), the operating temperature, the system pressure, and the flange type/surface. Always consult the manufacturer's chemical resistance and temperature-pressure charts. Kaxite Sealing provides comprehensive technical datasheets and expert application support to help you choose between our NA1 to NA5 grades for optimal performance and safety.
Can Kaxite non-asbestos gaskets be used in high-temperature applications like exhaust systems?
Absolutely. Our Grade NA4 non-asbestos gasket is specifically formulated for high-temperature services. It utilizes glass fibers and specialized high-temperature binders that maintain seal integrity and resist burnout at continuous temperatures up to 400°C, making it an excellent and safe choice for exhaust gaskets, boiler manways, and superheated steam lines.
What are the storage and handling precautions for non-asbestos gaskets?
Store gaskets in a cool, dry place away from direct sunlight, ozone sources (like electric motors), and extreme temperatures. Keep them flat to avoid warping or bending. Avoid contact with oils, solvents, or chemicals before installation. Although non-asbestos materials are safe, always follow good industrial hygiene practices, such as avoiding generating excessive dust during cutting or handling.
How do I ensure a proper seal when installing a non-asbestos gasket?
Ensure flange surfaces are clean, undamaged, and aligned. Select the correct gasket thickness and size for your flange. Use a controlled bolt tightening sequence (cross-pattern) and torque to the values specified by the equipment or flange standard. This ensures even compression of the gasket, allowing it to flow into flange imperfections and create an effective seal without being over-compressed and damaged.
Does Kaxite Sealing offer custom-shaped non-asbestos gaskets?
Yes, we specialize in custom fabrication. We can produce non-asbestos gaskets in any shape or size using precision die-cutting, CNC cutting, or laser cutting technology based on your supplied drawings, samples, or flange specifications. This ensures a perfect fit, reduces installation time, and eliminates on-site cutting waste.
