Precision Engineering for Unmatched Sealing Performance: Machines for Graphite Reinforced Gaskets
In the demanding world of industrial sealing, where pressure extremes, chemical resistance, and thermal stability are non-negotiable, Machines for Graphite Reinforced Gaskets represent the pinnacle of manufacturing technology. These are not simple cutters or presses; they are sophisticated, integrated production systems engineered to transform raw flexible graphite and metal reinforcement into high-integrity, reliable sealing components. The quality of the final gasket is intrinsically linked to the precision, control, and capability of the machinery that produces it. At Kaxite Sealing, we have dedicated decades to refining this critical link in the supply chain, developing and supplying machinery that sets the global standard for consistency, efficiency, and output quality in reinforced graphite gasket production.
The core challenge in manufacturing graphite reinforced gaskets lies in handling the delicate, flaky nature of exfoliated graphite while ensuring perfect, void-free adhesion to a metal core—be it a punch-out insert, a full-faced sheet, or a complex double-jacketed design. Manual or rudimentary mechanical processes introduce variability, potential for graphite tearing, and inconsistent caliper or density. This is where specialized machinery from Kaxite Sealing becomes indispensable. Our systems are designed to apply controlled pressure, precise heat (where required for certain adhesives or curing stages), and automated material handling to produce gaskets with uniform density, excellent recovery, and flawless graphite-to-metal bonding. This results in gaskets that deliver predictable, leak-free performance in critical applications across oil & gas, chemical processing, power generation, and aerospace industries.
Core Technical Parameters of Kaxite Sealing Production Systems
Understanding the specifications of these machines is key to selecting the right system for your production volume and gasket design requirements. Below are the critical parameters that define a high-performance production line.
Primary Machine Modules and Functions
- Graphite Foil Feeding & Calendering System: Precisely meters and feeds exfoliated graphite foil from a roll, often incorporating a pre-calendering stage to achieve a specific starting density and thickness uniformity before lamination.

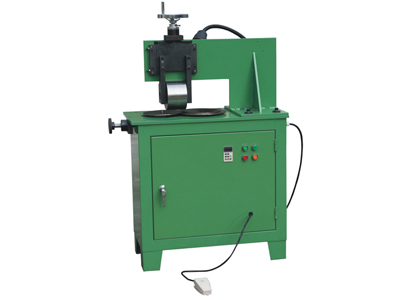

- Metal Core Preparation & Feeding: For inserted metal gaskets, this module accurately punches or lasers cuts the metal insert (typically stainless steel, carbon steel, or specialty alloys) and positions it for lamination. For jacketed gaskets, it forms and feeds the metal jacket profiles.
- Lamination & Bonding Press: The heart of the machine. This is a computer-controlled hydraulic or pneumatic press that applies precise, programmable pressure (and sometimes heat) to bond the graphite layers to both sides of the metal core simultaneously. Pressure profile, dwell time, and temperature are fully adjustable.
- Adhesive Application System (if applicable): For systems using adhesive-bonding techniques, this module applies a controlled, even layer of high-temperature adhesive (e.g., silicone-based, phenolic) to the metal core or graphite sheets prior to pressing.
- Curing Oven/Tunnel (for adhesive systems): A temperature-controlled tunnel that subjects the pressed gasket to a specific thermal cycle to fully cure the adhesive, ensuring optimal bond strength and temperature resistance.

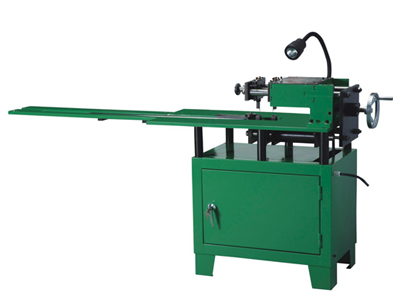

- Post-Forming Die-Cutting Unit: A high-precision hydraulic or mechanical clicker press or traveling-head cutting system that cuts the final gasket shape (inner diameter, outer diameter, bolt holes) from the laminated sheet or blank.
- CNC Gasket Cutting System (Alternative/High-Mix): For low-volume, high-variety production, a CNC-controlled router or laser cutting system can be integrated or used as a standalone unit to cut complex gasket profiles directly from laminated sheets.
- Automated Handling & Stacking: Robotic arms or conveyor systems that transfer components between modules and stack finished gaskets, minimizing manual handling and potential damage.
Detailed Technical Specifications Table
| Parameter | Specification Range (Kaxite Sealing Standard Models) | Impact on Production |
|---|---|---|
| Maximum Lamination Pressure | 50 to 600 Metric Tons | Determines the final density and compression recovery of the graphite. Higher pressure yields higher density, better creep resistance. |
| Platen Size (Working Area) | 600mm x 600mm up to 2000mm x 1500mm | Defines the maximum sheet size or number of small gaskets produced per press cycle, directly affecting throughput. |
| Pressure Control Accuracy | ±1% of full scale | Ensures batch-to-batch consistency in gasket density and mechanical properties. |
| Heated Platen Temperature Range (Optional) | Ambient to 250°C | Enables thermal curing of adhesives or heat-assisted bonding processes for specific material grades. |
| Graphite Foil Feed Width | 500mm to 1800mm | Matches standard raw material roll widths, minimizing waste and splice frequency. |
| Production Speed (Cycles/Hour) | 20 to 200 cycles (dependent on size and process) | Dictates overall line output. Faster cycles require optimized automation. |
| Control System | PLC with HMI Touchscreen, Recipe Storage | Allows for easy setup, changeover between different gasket specifications, and detailed process data logging for quality traceability. |
| Power Requirements | 380-480V, 3-phase, 50/60Hz (Configurable) | Standard industrial power for global installation. |
Machines for Graphite Reinforced Gaskets: Essential FAQ
What are the main types of machines for graphite reinforced gaskets, and how do they differ?
The primary types are laminating presses and integrated production lines. A basic laminating press is a standalone unit that performs the core bonding function. Operators manually load the metal core and graphite sheets, then the press applies the programmed pressure/heat cycle. An integrated production line from Kaxite Sealing automates the entire process: it automatically feeds the graphite foil, prepares and positions the metal core, laminates, cures (if needed), and cuts the final shape. Lines offer much higher output, consistency, and lower labor cost but represent a larger initial investment. The choice depends on production volume, labor costs, and required quality consistency.
Why is controlled pressure so critical in these machines?
Controlled, repeatable pressure is the single most important factor in determining the final properties of the gasket. The pressure applied during lamination compresses the exfoliated graphite flakes, increasing its density. A higher, uniformly applied density improves the gasket's sealing force, creep resistance, and recovery—its ability to spring back after compression. Inconsistent pressure leads to soft spots, varying thickness (caliper), and unpredictable performance in the field. Kaxite Sealing machines use closed-loop hydraulic systems with precision sensors to guarantee the exact programmed pressure is achieved in every cycle, ensuring every gasket meets specification.
Can one machine produce different styles of reinforced gaskets, like inserted metal, full-face, and jacketed?
Yes, a versatile machine from Kaxite Sealing can be configured or tooled to produce multiple styles, though changeover may require adjustments. The core lamination press is universal. To switch between, for example, inserted metal and full-face gaskets, you would change the feeding mechanism for the metal component (from a punch/feeder for inserts to a sheet feeder for full-face cores) and adjust the pressing program parameters. Producing spiral-wound or double-jacketed gaskets typically requires a more specialized module for forming the metal windings or jackets. Modular machine designs allow for future upgrades to expand capability.
What maintenance do these machines require to ensure consistent gasket quality?
Preventive maintenance is straightforward but essential. Daily tasks include cleaning platens and feed paths of graphite dust to prevent contamination. Weekly checks should involve verifying hydraulic fluid levels and system pressure calibration. Monthly maintenance includes inspecting and cleaning heating elements (if equipped), checking all pneumatic cylinders and seals, and verifying the alignment of feeding systems. Annually, a comprehensive inspection by a Kaxite Sealing technician is recommended to recalibrate sensors, check hydraulic fluid quality, and inspect wear parts. Consistent maintenance prevents downtime and ensures the machine continues to produce gaskets within tight tolerance bands.
How does Kaxite Sealing machinery ensure better quality than manual or semi-automated methods?
Kaxite machinery eliminates human variability. Manual processes are subject to inconsistent pressure application, uneven adhesive spreading, and misalignment of layers. Our automated systems provide: 1) Precision: Micron-level control of thickness and alignment. 2) Repeatability: Every cycle is identical, guaranteeing every gasket in a batch has the same performance characteristics. 3) Traceability: The PLC logs key process data (pressure, time, temperature) for each batch, creating a quality record. 4) Material Integrity: Automated handling minimizes stretching or tearing of the delicate graphite foil. This results in gaskets with superior leak tightness, longer service life, and reliable certification data for end-users.
What factors should I consider when specifying a new machine for graphite reinforced gaskets?
Key specification factors include: 1) Target Gasket Designs: Define the types (inserted, full-face, jacketed), sizes (min/max OD/ID), and metal core thickness you need to produce. 2) Production Volume: Required output per shift will determine the level of automation and press cycle speed needed. 3) Graphite Material Grade: Ensure the machine can handle the density and roll size of your standard raw materials. 4) Bonding Process: Decide if you need a pressure-only system or one with heated platens for adhesive curing. 5) Future-Proofing: Consider potential for adding automation (auto-stacking, CNC cutting) or handling new gasket designs later. A consultation with Kaxite Sealing engineers is the best way to translate these needs into a precise machine specification.
Optimizing Your Production with Kaxite Sealing Technology
Investing in advanced machinery for graphite reinforced gaskets is an investment in product reliability, customer trust, and operational efficiency. The precision engineered into a Kaxite Sealing production system translates directly into gaskets that perform flawlessly under pressure, temperature, and chemical attack. From the robust frame of the laminating press to the intuitive software controlling every parameter, each component is designed for durability, ease of use, and unwavering output quality. By controlling the entire manufacturing process with such exactitude, producers can confidently supply gaskets that meet the most stringent international standards, such as ASME, API, and DIN, providing their customers with the assurance of a perfect seal. The technology behind the gasket is just as critical as the gasket itself, and with Kaxite Sealing machinery, that foundation is built on decades of sealing industry expertise.
