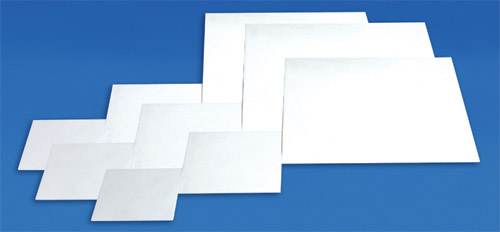

PTFE Resin Moded Sheet

Discover Kaxite Sealing's PTFE Resin Moded Sheet, a premium solution for sealing applications in demanding environments. Engineered with high-performance PTFE resin, it offers exceptional chemical resistance, durability, and easy installation. Ideal for industries like automotive and manufacturing, this sheet ensures reliable performance and cost efficiency. Its unique molding process guarantees superior quality, enhancing safety and satisfaction. Elevate your projects with this trusted product today.

Send Inquiry

Product Description

With professional PTFE Resin Moded Sheet factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China PTFE Resin Moded Sheet manufacturers and suppliers.

[ Features ]

PTFE molded sheet is manufactured by molding method with PTFE granular resin.
PTFE is the most chemical resistance of all known plastics. It does not age. It has the lowest coefficient of friction of all known solid materials and a wide range of practicable temperature from -180%°C - +260°C.

[ Specifications ]

Length(mm)×Width(mm)	Thickness(mm)
Length(mm)×Width(mm)	Nominal	Tolerance
150×150	1.0-30	±0.30-±0.50
250×250	1.5-30	±0.30-±0.50
300×300	1.5-30	±0.30-±0.50
450×450	1.5-30	±0.30-±0.50
600×600	2-30	±0.30-±0.50
800×800	3-30	±0.30-±0.50
1000×1000	3-30	±0.30-±0.50
1200×1200	3-30	±0.30-±0.50
1000×2000	5-35	±0.30-±0.60
1500×1500	5-30	±0.30-±0.50
1800×1800	8-30	±0.30-±0.50
2000×2000	8-30	±0.30-±0.50

[ Main properties ]

Properties	Unit	Result
Apparent density	g/cm³	2.10-2.30
Tensile strength (min)	MPa	15.0
Ultimate elongation (min)	%	150
Dielectric strength(min)	KV/mm	10

[ Applications ]

Lining Bearing pads, seals, and electrical insulation.

Hot Tags: PTFE resin molded sheet, PTFE sheet supplier, industrial PTFE sheet
