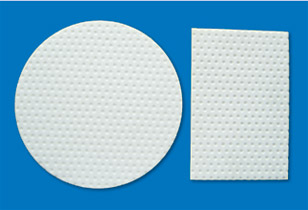

PTFE Bearing Slide

Discover the Kaxite Sealing PTFE Bearing Slide, a premium product designed to ensure smooth and quiet operation in mechanical systems. It features a durable PTFE material that reduces friction, enhances longevity, and is ideal for industrial and automotive applications. Users will experience improved efficiency and reliability, solving common wear-and-tear issues. Unlike competitors, it offers superior low-resistance performance. Upgrade your equipment today with Kaxite Sealing for unmatched quality and precision.

Send Inquiry

Product Description

[ Features ]

PTFE bearing slide is made from high strength PTFE suspension resin by methods of moulding, sintering and finalizing the design to various sizes. Different fillings can be used to achieve special demands. It can also be adhered to rubber and metal with one side etched.
PTFE has very low coefficient of friction, it is anticorrosive and not aging, can be widely used in temperature from -180

to +260

[ Main properties ]

Properties	Unit	Result
Apparent density	g/cm³	2.10-2.25
Tensile strength (min)	MPa	30
Ultimate elongation (min)	%	250

[ Specifications ]

Round Type
Diameter(mm)	Thickness (mm)	Diameter(mm)	Thickness (mm)	Diameter(mm)	Thickness (mm)
Φ140	6-8	Φ240	6-8	Φ415	6-8
Φ150	6-8	Φ260	6-8	Φ636	6-8
Φ160	6-8	Φ300	6-8	Φ740	6-8
Φ180	6-8	Φ320	6-8	Φ852	6-8
Φ210	6-8	Φ340	6-8
