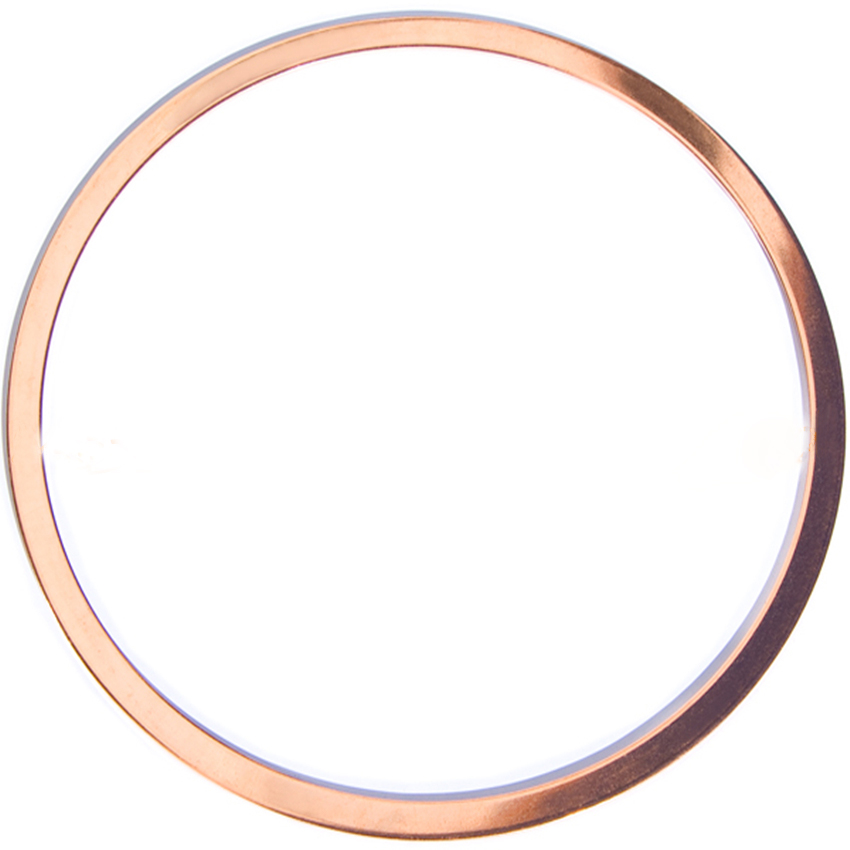

OFHC Copper Gaskets for CF Flanges

Elevate your sealing solutions with Kaxite Sealing's OFHC Copper Gaskets for CF Flanges, designed for high-vacuum and ultra-high-purity applications in research and industry. These gaskets feature oxygen-free high-conductivity copper for superior leak-tightness, corrosion resistance, and consistent performance. Ideal for laboratories, semiconductor manufacturing, and aerospace sectors, they ensure reliable connections that minimize downtime and enhance safety. Experience peace of mind with a product that outperforms standard alternatives through precision engineering. Trust Kaxite Sealing for durable, efficient sealing—order now to optimize your operations.

Send Inquiry

Product Description

To make a leak tight UHV seal between two conflat flanges, a gasket is required. OFHC (oxygen free high conductivity) copper is normally used as this sealing material as it is very clean, can easily be formed to shape, has a wide temperature range, and has a low outgassing rate.

Type	A	B	Oxygen-free Copper
			Oxygen-free Copper
			Order no.	weight /kg
16	21.3	16.2	7355	0.01
25	35	25.6	7356	0.01
35	48.1	36.8	7357	0.02
50	61.6	52	7358	0.02
63	82.4	63.6	7359	0.05
80	99	82	7360	0.07
100	120.5	102	7361	0.07
150	171.3	152.5	7362	0.1
200	222.1	203	7363	0.14
250	273.1	254	7364	0.2
