PTFE Heat Exchanger

PTFE Heat Exchanger

Discover the Kaxite Sealing PTFE Heat Exchanger, a durable and efficient solution for industrial heat transfer. Crafted from high-quality PTFE, it excels in corrosive environments while ensuring reliable performance for chemical, pharmaceutical, and processing applications. Users experience enhanced safety and cost savings, making it a superior choice compared to standard alternatives. Elevate your operations with this innovative technology—trust Kaxite Sealing for excellence.
[ Features ]
PTFE heat exchanger contains two parts, PTFE extruded tubings which are manufactured by dispersion raw materials and PTFE sticks which are manufactured by suspension raw materails. PTFE has reiable properties of anticorrosive, not aging, heat resistance, non-stick and self-lubrication. So PTFE heat exchanger has a wide application, long life of use. It is stable and easy to clean and install, all of which makes it the most ideal heat exchanger.

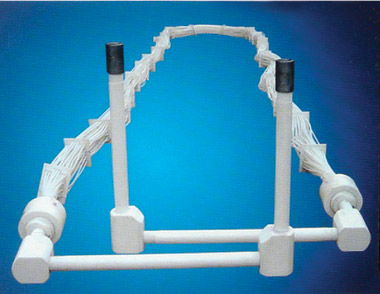

PTFE Heat Exchanger
[ Main properties ]

Properties

Unit

Result

Tensile strength (min)

MPa

15

Ultimate elongation (min)

%

160
Heat Exchange Rate (min)
%
90
Temperature Limit
250
Compressive Strength
MPa
0.4
[ Applications ]
Grooves of acid, plating bath chromeplate bath, etc.
[ Types and Parameters ]

Number of Tubings

Tubing Size

Heat Exchange Area (m2)

10
6X1200
2.26
25
5.65
50
11.30

PTFE Heat Exchanger PTFE Heat Exchanger PTFE Heat Exchanger
GS-U Type GS-L Type GS-O Type
