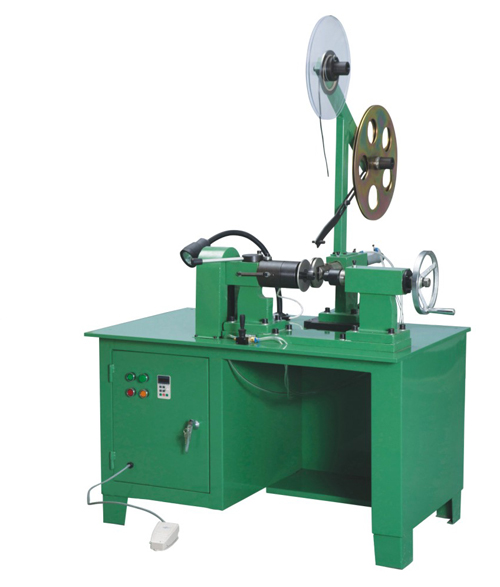

Winding Machine For Small Size SWG

Winding Machine For Small Size SWG

Introducing Kaxite Sealing's Winding Machine For Small Size SWG: the ultimate solution for precise and efficient wire winding in compact assemblies. Built with durable materials, advanced technology, and user-friendly design, it delivers superior performance for hobbyists and professionals alike. Experience seamless operation, improved productivity, and flawless results, solving common winding challenges with unmatched reliability. Its compact size and innovative features set it apart, making every project easier and more enjoyable. Trust Kaxite Sealing for quality and innovation—empower your creations today!
Specification as following:
STYLE KXT E200A winding machine for small size SWG
Producing ability 1/2"—6" spiral wound gasket with or without inner ring
SWG thickness 4.5mm (also suitable for 2.5mm, 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)
Maximum gasket OD 200mm
Minimum gasket ID 15mm
Gasket OD tolerance ±0.5mm
Spindle motor rotation speed 0--240rpm
Total power 2.2kw
Spindle motor power 0.75kw
Power supply 380V/220V as request, 3 phases
Air compressor 0.6—0.8 MPA
Frequency Converter 2.2G
Machine measurement 1200*850*1650mm
Machine net weight 280kg
