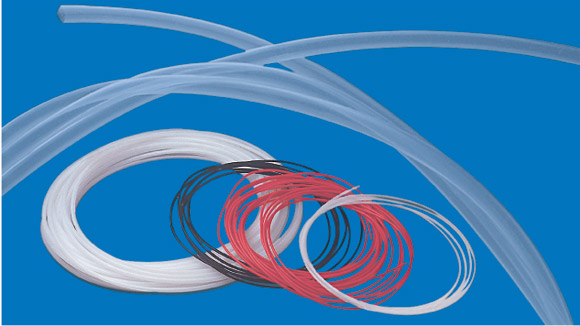

FEP Tubing

Discover Kaxite Sealing's FEP Tubing, a high-performance solution for critical applications where chemical resistance and purity are essential. Made from premium fluorinated ethylene propylene, this tubing offers unmatched durability, flexibility, and transparency, ideal for medical, pharmaceutical, and laboratory use. Experience the confidence of reliable sealing and effortless handling in demanding environments—choose Kaxite Sealing for superior quality and innovation in every tube.

Send Inquiry

Product Description

[ Features ]

FEP also named F46, it manfactured by ram extruding method with FEP resin adding additive (or without additive) has realiable. properties of resistant from high or low temperature, chemical corruption electric insulation, non-stick.

[ Specifications ]

Unit mm

outside diameter	Tolerance	wall thickness	Tolerance	outside diameter	Tolerance	wall thickness	Tolerance
1	0.08	0.2	0.05	16	0.20	1.0	0.15
2	0.08	0.2	0.05	18	0.20	1.0	0.15
3	0.10	0.4	0.06	20	0.40	1.0	0.15
4	0.10	0.4	0.06	25	0.40	1.5	0.20
5	0.10	0.5	0.10	32	0.50	1.5	0.20
6	0.10	0.5	0.10	36	0.50	2.0	0.20
8	0.20	0.5	0.10	40	0.50	2.0	0.20
10	0.20	1.0	0.15	50	0.50	2.0	0.20
12	0.20	1.0	0.15	65	0.80	3.0	0.30
14	0.20	1.0	0.15	80	1.00	3.0	0.40

[ Main properties ]

Properties	Unit	Result
Properties	Unit	electricity gas	be current
Tensile strength	Mpa	14	14
Ultimate Elongation	%	175	175
Dialectric Strength 0.2mm wall 0.4mm thickness 0.5mm	MV/m	30 25 24	-- -- --

[ Applications ]

Can be long term used under the temperature from -80

- 200

.
YCSG-1 tube mainly used in various electric cable, electric wire, protecting cover, eletric elements and ray tube.
YCSG-2 tube mainly used in bad working coudition, for example, inner liner pipes for corrosive fluids and gas, heat exchange machine tube and fluids meter tube.
